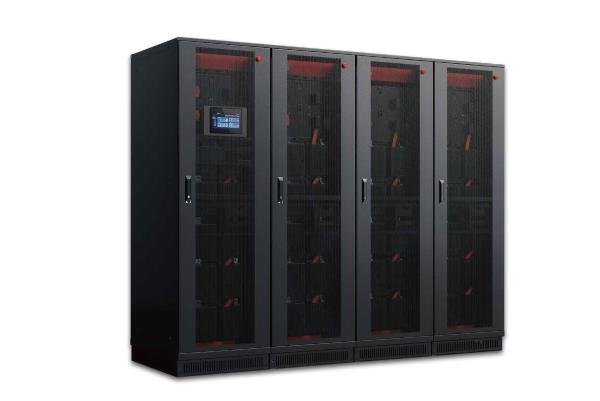

● All units adopt modular design, including power module, bypass module, monitoring module, which can be easily integrated in MDC or customized cabinete

● Wide input voltage range, line voltage range is 138-485V

● Parallel redundant configuration (Max 8 units) to enhace reliability.

● High input power factor 0.99, high efficiency 96.5% and ECO mode to save energy

● LBS funtion & Strong load capacity

● Intelligent management:Standard colorful touch screen

● Compatible with generator

● VRLA & Lithium battery supportable

Category:

Description

General Features

● All units adopt modular design, including power module, bypass module, monitoring module, which can be easily integrated in MDC or customized cabinete

● Wide input voltage range, line voltage range is 138-485V

● Parallel redundant configuration (Max 8 units) to enhace reliability.

● High input power factor 0.99, high efficiency 96.5% and ECO mode to save energy

● LBS funtion & Strong load capacity

● Intelligent management:Standard colorful touch screen

● Compatible with generator

● VRLA & Lithium battery supportable



Technical Specification

Model HPM3300E-RM-40 HPM3300E-RM-50 HPM3300E-RM-60
Cabinet Model HPM3300E-80 HPM3300E-120 HPM3300E-100 HPM3300E-150 HPM3300E-120
Cabinet capacity (VA) 40k~80k 40k~120k 50k~100k 50k~150k 60k~120k
Module capacity (VA) 40k 50k 60k
Max. number 2+1 3 2+1 3 2+1
Input
Nominal voltage 380/400/415Vac, (3Ph+N+PE)
Operating voltage range 138~305Vac for 40% load; 305~485Vac for 100% load
Operating frequency range 40Hz~70Hz
Power factor ≥0.99
Harmonic distortion (THDi) ≤3% (100% linear load)
Bypass voltage range Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)
Min. voltage: -45% (optional-10%, -15%, -20%, -30%)
Bypass frequency range ±10%
Power Walk In Support
Generator input Support
Output
Rated voltage 380/400/415Vac, (3Ph+N+PE)
Power factor 1
Voltage regulation ±1%
Output Line mode Synchronize with input, when the input frequency >±10%(±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)
frequency Bat. mode (50/60±0.1%)Hz
Crest factor 3:01
Harmonic distortion (THDv) ≤2% with linear load; ≤4% with nonlinear load
Efficiency 96.50%
Battery
VRLA battery 360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no power
Battery voltage derating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)
Lithium battery 512Vdc
Power module charge current 20A (Max.)
System features
Transfer time Utility to Battery : 0ms; Utility to Bypass: 0ms
Overload Line mode ≤110%, 60min; ≤125%, 10min; ≤150%,1min to bypass; >150%, shut down immediately
Bypass mode 30℃:135% overload for long term; 40℃:125% overload for long term; 1000% overload for 100 ms
Overheat Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately
Low battery voltage Alarm and Switch off
Self-diagnostics Upon Power On and Software Control
Backfeed protection Support
Battery Advanced Battery Management
Noise suppression Complies with EN62040-3
Audible & visual alarms Line Failure, Battery Low, Overload, System Fault
Status LED & LCD display Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault
Reading on the LCD display Input, Output, Battery, Command, Setting, Maintenance
Communication interface RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)
Operation Environment
Operating temperature 0℃~40℃
Storage temperature -25℃~55℃
Humidity range 0~95% (non condensing)
Altitude <1500m, derating required when >1500m
Noise level <57dB <58dB <62dB
Physical
Dimension UPS cabinet 485×850×620
W×D×H (mm) Power module 440×620×130
Net weight (kg) UPS cabinet 103 113 110
Power module 33 34 35
Standards
Safety IEC/EN62040-1, IEC/EN62477-1
EMC IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)
