Category:

Description

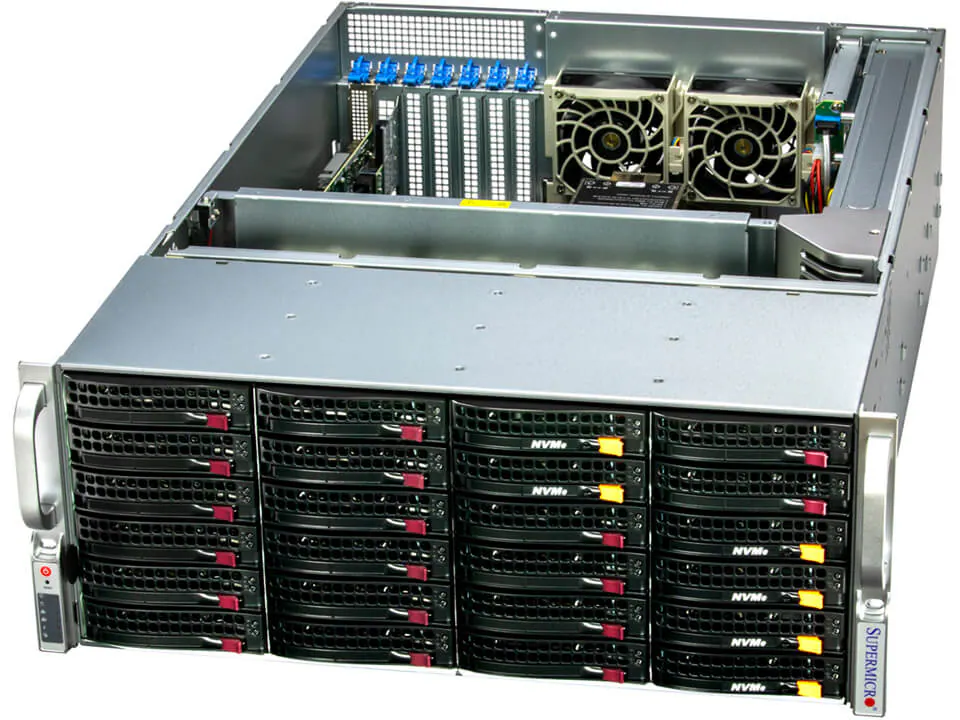

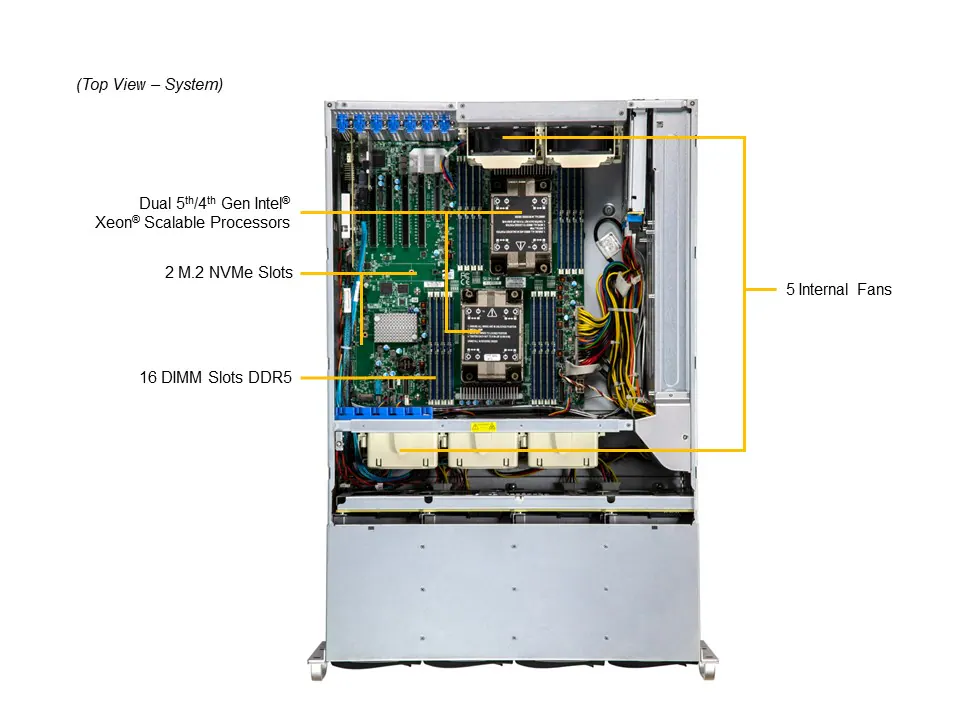

Motherboard
Super X13DEI-T
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s) (Rear)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 4U Rackmount
Model
  • CSE-846BTS-R1K23BP5
Dimensions and Weight
Height
  • 7″
Width
  • 17.2″
Depth
  • 26″
Package
  • 15″ (H) x 27″ (W) x 39″ (D)
Weight
  • Gross Weight: 92 lbs (41.7 kg)
  • Net Weight: 55 lbs (24.9 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) FHHL slot(s)
    • 2 PCIe 5.0 x8 (in x8) FH/10.5″L slot(s)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 26 bay(s)
    • 24 front hot-swap 3.5″ SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5″ SATA drive bay(s)
  • Option A: Total 6 bay(s)
    • 6 front hot-swap 3.5″ NVMe* drive bay(s)
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
